143 - Handrail Bracket (Self Colour)

Often used to attach to walls, as a positional wall fixing for structures, or to attach kick-plates to uprights. The tube cannot be joined within the fitting.

This fitting is not to be used as a solitary base plate for guardrail or similar load bearing applications.

Please note that these fittings are bare metal and will be naturally prone to rusting unless a protective coating such as a lacquer is applied.

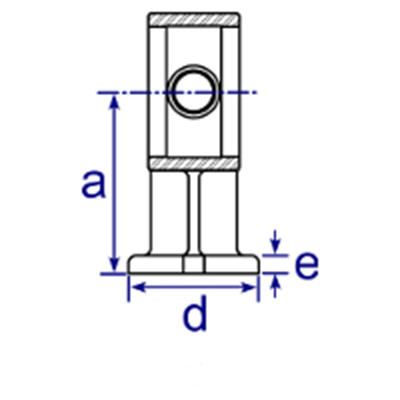

Product Data & Dimensions

Size a (mm) b (mm) c (mm) d (mm) e (mm) Hole Dia (mm) Weight (kg) Box Qty*
  B34   57   80   62   44   7   8   0.38   80

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
