167 - Double Swivel Connection

167 - Double Swivel Connection

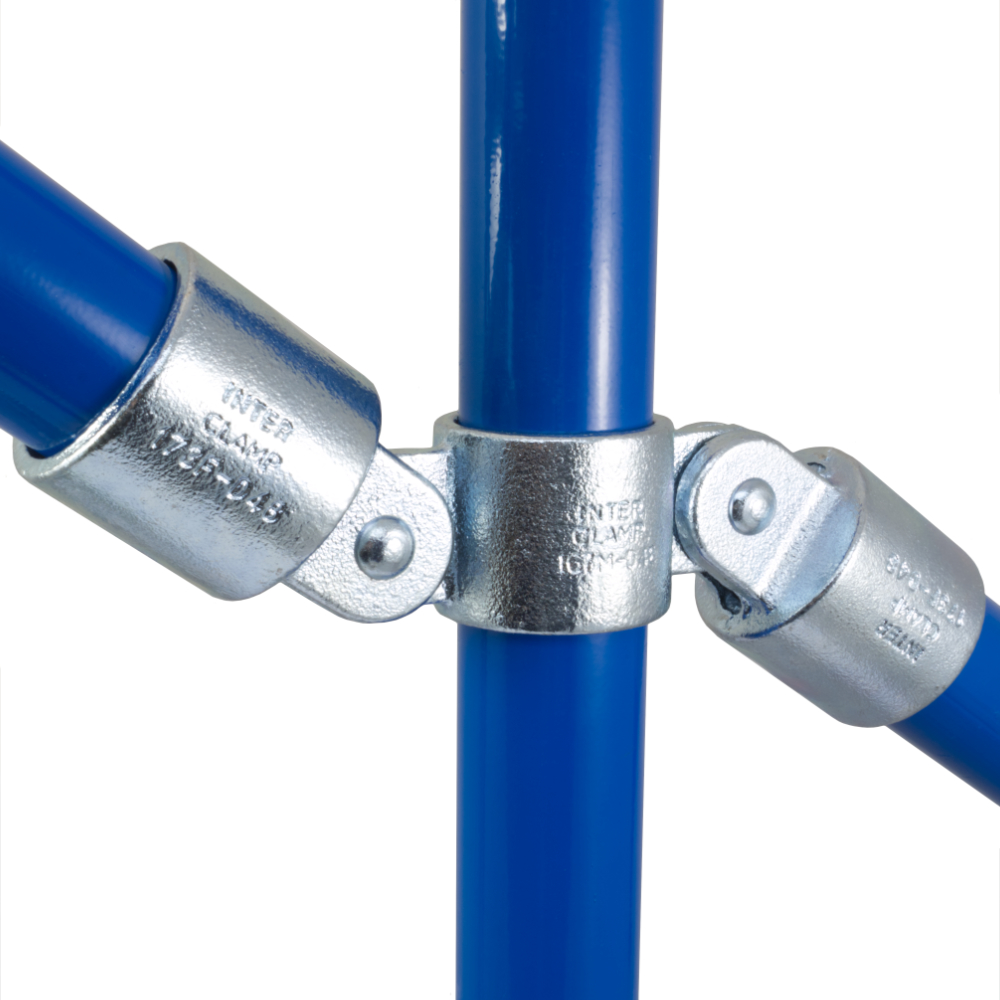

A versatile swivel fitting, useful for awkward applications where angles cannot be accommodated by adjustable angle fittings. The assembly is riveted together, although items can be supplied separately as 167M and 2 x 173F. The through tube (vertical in photo) cannot be joined within the fitting.

Warning: To provide sufficient stability, whole structures must not be made from swivel fittings alone.

Lista Giunti Stampare < Precedente Successivo >

Dati del prodotto e dimensioni

Dimensione b (mm) Peso (Kg) Box Qty* EAN No
  A27   202   0.77   56   5060511021654
  B34   208   1.09   36   5060511021661
  C42   228   1.32   20   5060511021678
  D48   259   1.53   16   5060511021685
  E60   300   2.4   8   5060511021692
