166 - Knuckle Regolabile

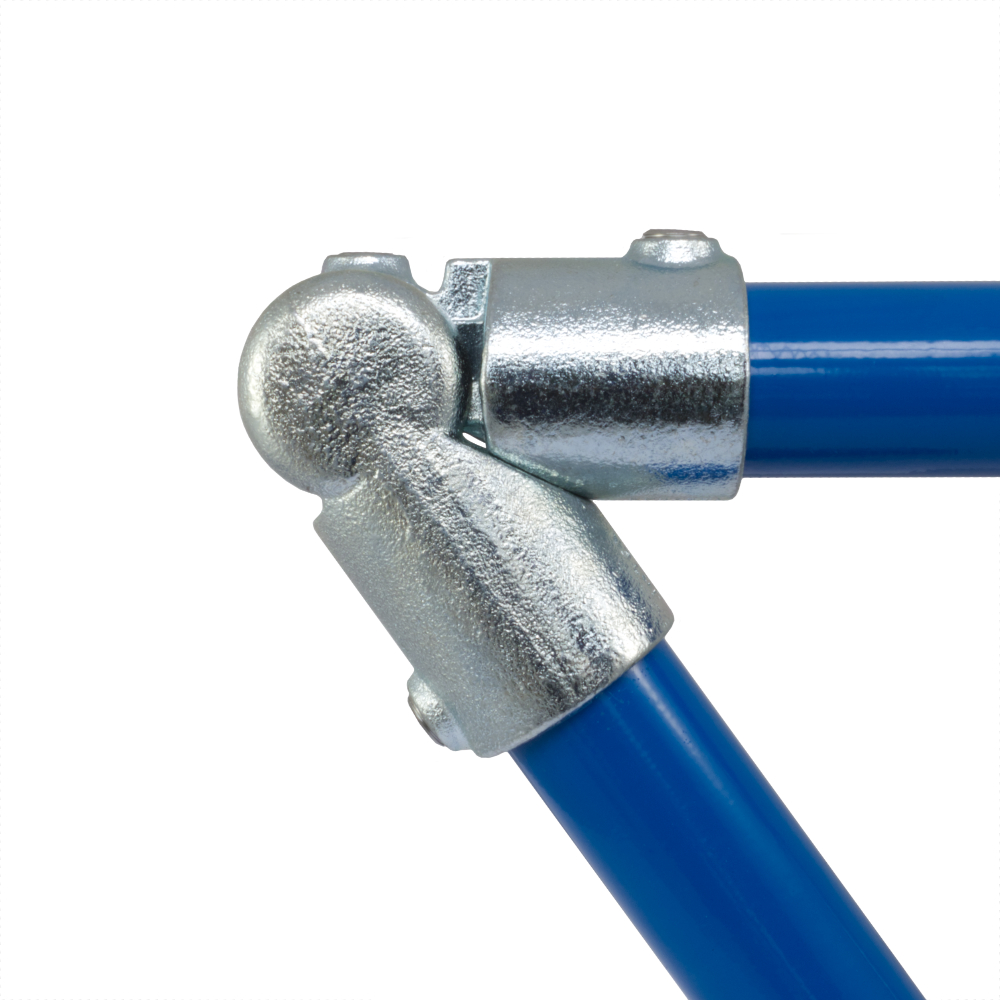

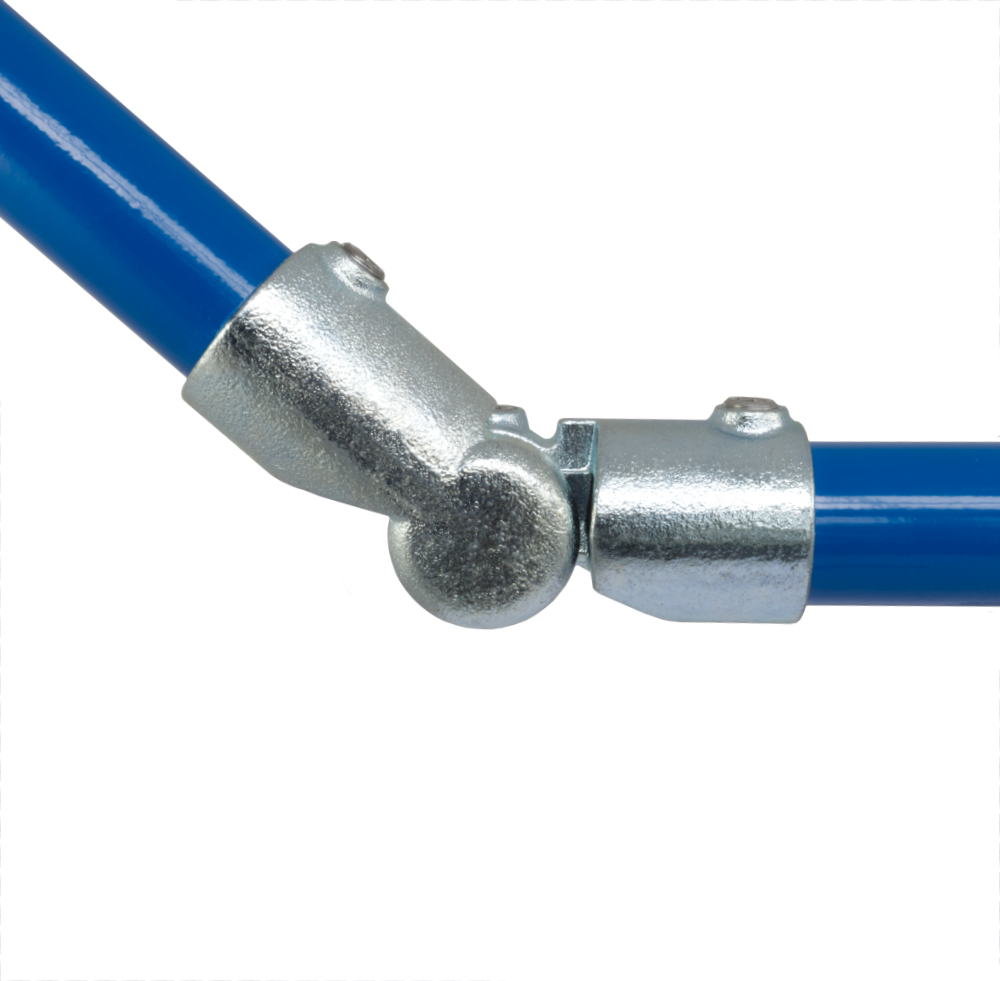

A versatile fitting, often used where a horizontal rail is joined to a sloping section. Once the desired angle is obtained, the knuckle is secured with a standard setscrew.

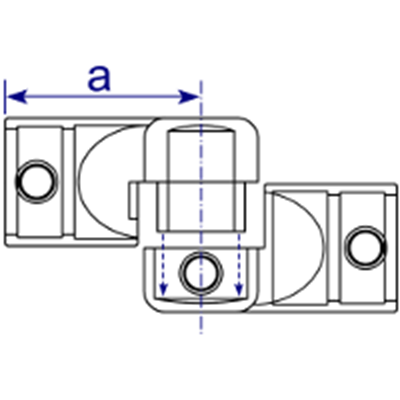

Dati del prodotto e dimensioni
| Dimensione | a (mm) | Peso (kg) | Box Qty* | Part No |
| AA21 | - | 0.28 | 50 | 166-AA21 |
| B34 | 78 | 0.87 | 42 | 166-B34 |
| C42 | 88 | 1.28 | 28 | 166-C42 |
| D48 | 93 | 1.45 | 23 | 166-D48 |
| E60 | 110 | 2.34 | 12 | 166-E60 |
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.
Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
