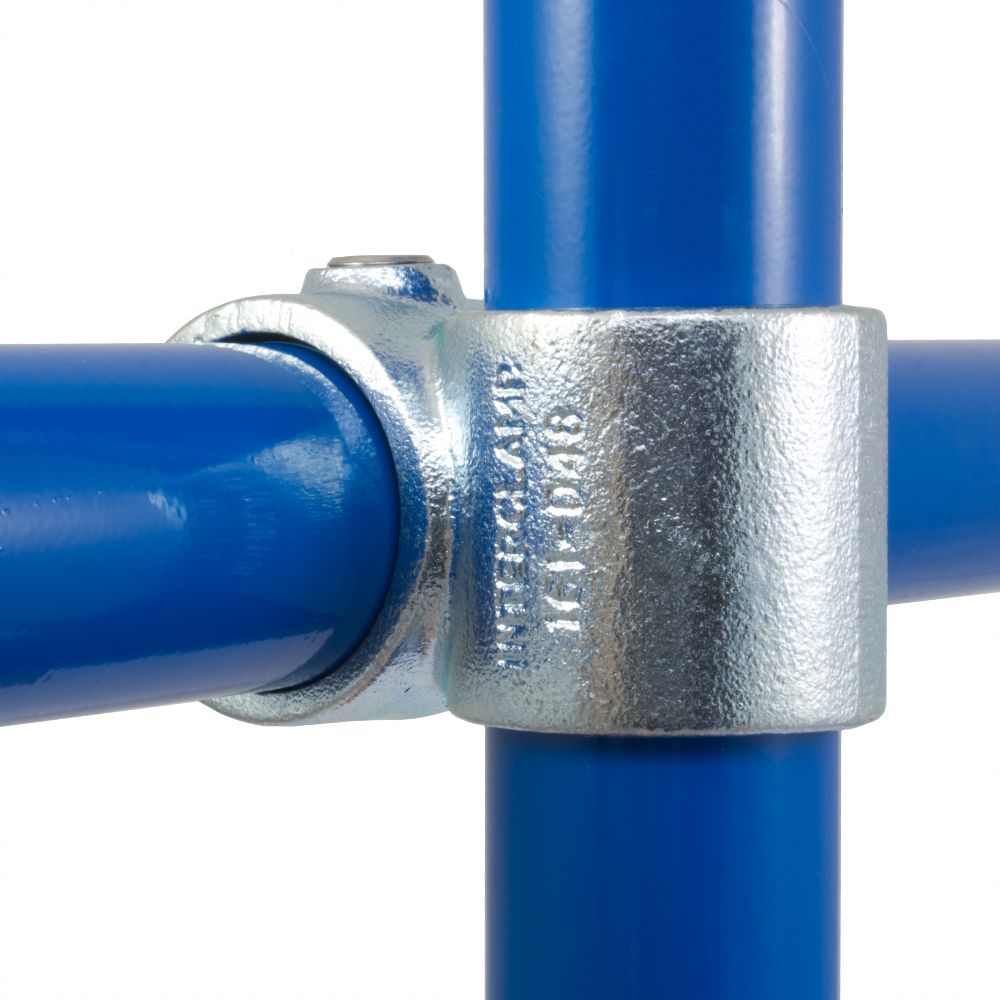

Designed to form a 90° crossover joint between two tubes, this fitting can reduce the need for cutting on horizontal rails. To add to existing structures, types 137 and 160 can often be used as alternatives.

Lista Giunti Stampare < Precedente Successivo >

Dati del prodotto e dimensioni

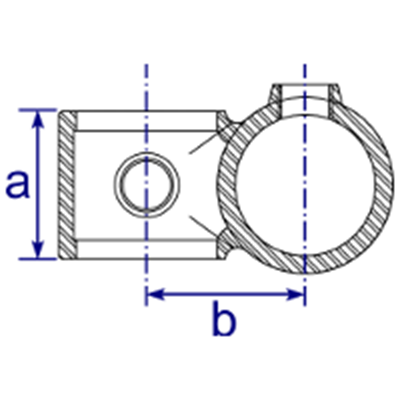

Dimensions Image 1 - 161 - Crossover
Dimensions Image 2 - 161 - Crossover
Dimensione a (mm) b (mm) Peso (Kg) Box Qty* GTIN / EAN No
  A27   31.5   38   0.22   192   5060511021463
  B34   38.5   41   0.33   105   5060511021470
  C42   46   49.5   0.50   48   5060511021494
  D48   51   55   0.57   40   5060511021517
  E60   61   67   0.89   24   5060511021548

* Fittings are sold individually and do not need to be bought in box quantites. Box Quanties may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
