156 - Slope Cross (traversa centrale) (0° - 11°)

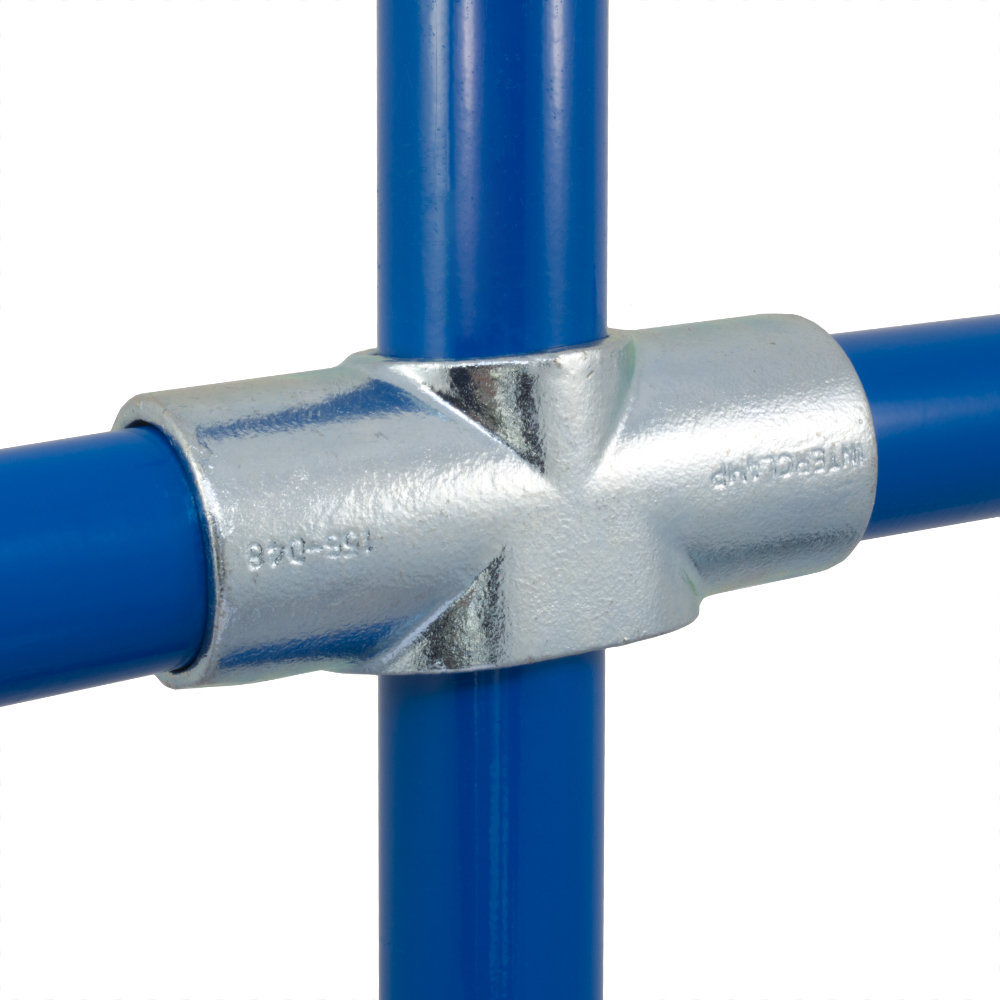

Adjustable for slopes from 0° to 11°, often used between middle rail and uprights on sloping sites and often paired with type 153 or 155. The through tube (vertical in photo) cannot be joined within the fitting.

Dati del prodotto e dimensioni

Dimensione a (mm) Peso (kg) Box Qty* Part No
  B34   112   0.54   50   156-B34
  C42   140   0.73   35   156-C42
  D48   158   0.88   24   156-D48

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
