150 - Giunto espandibile interno

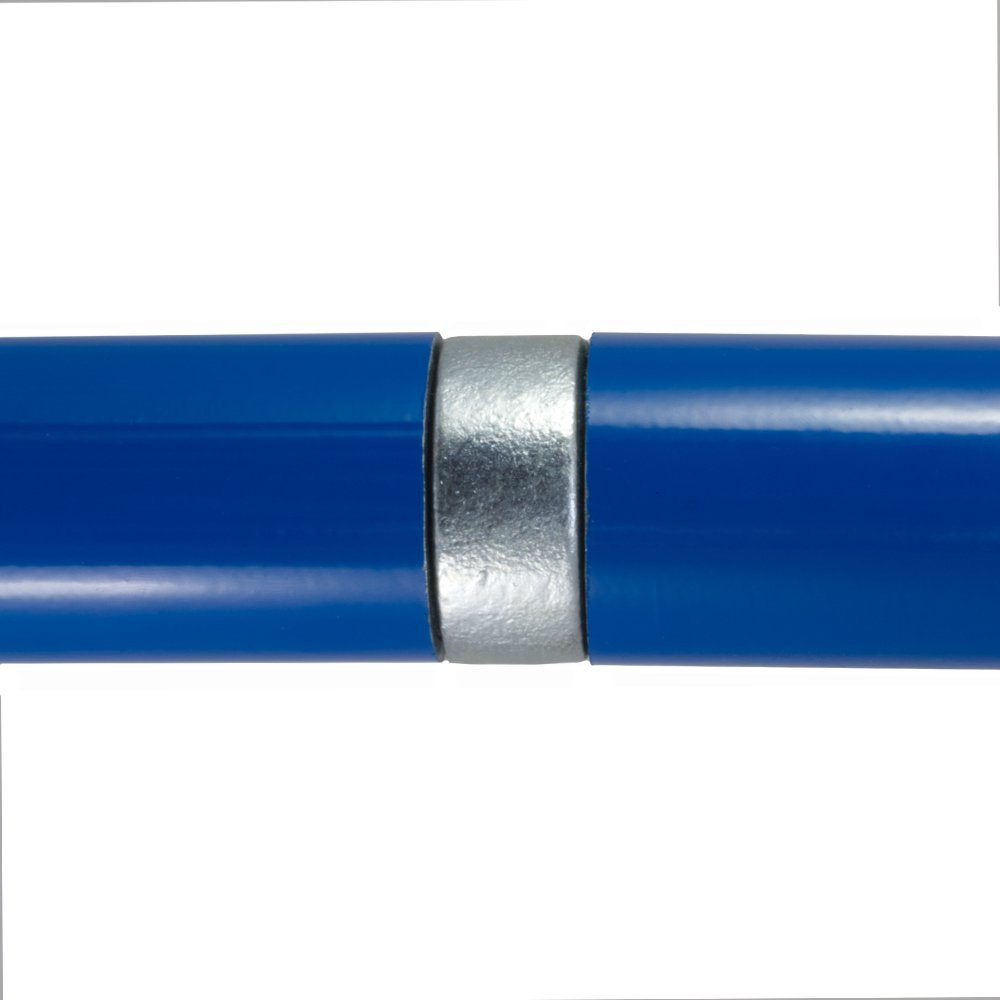

A straight fitting for joining tubes of the same size. This fitting can only be used for 3.25mm wall thickness tube (1”, 1 1/4” & 1 1/2” BS EN 10255, formerly BS 1387, medium weight) and must not be used as a load bearing joint, particularly for tensile loads. Type 149, which has superior load characteristics, may sometimes be used as an alternative.
Dati del prodotto e dimensioni
| Dimensione | a (mm) | b (mm) | Peso (kg) | Box Qty* | Part No |
| B34 | 78 | 20 | 0.24 | 115 | 150-B34 |
| C42 | 78 | 20 | 0.36 | 100 | 150-C42 |
| D48 | 78 | 20 | 0.43 | 100 | 150-D48 |
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.
Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
