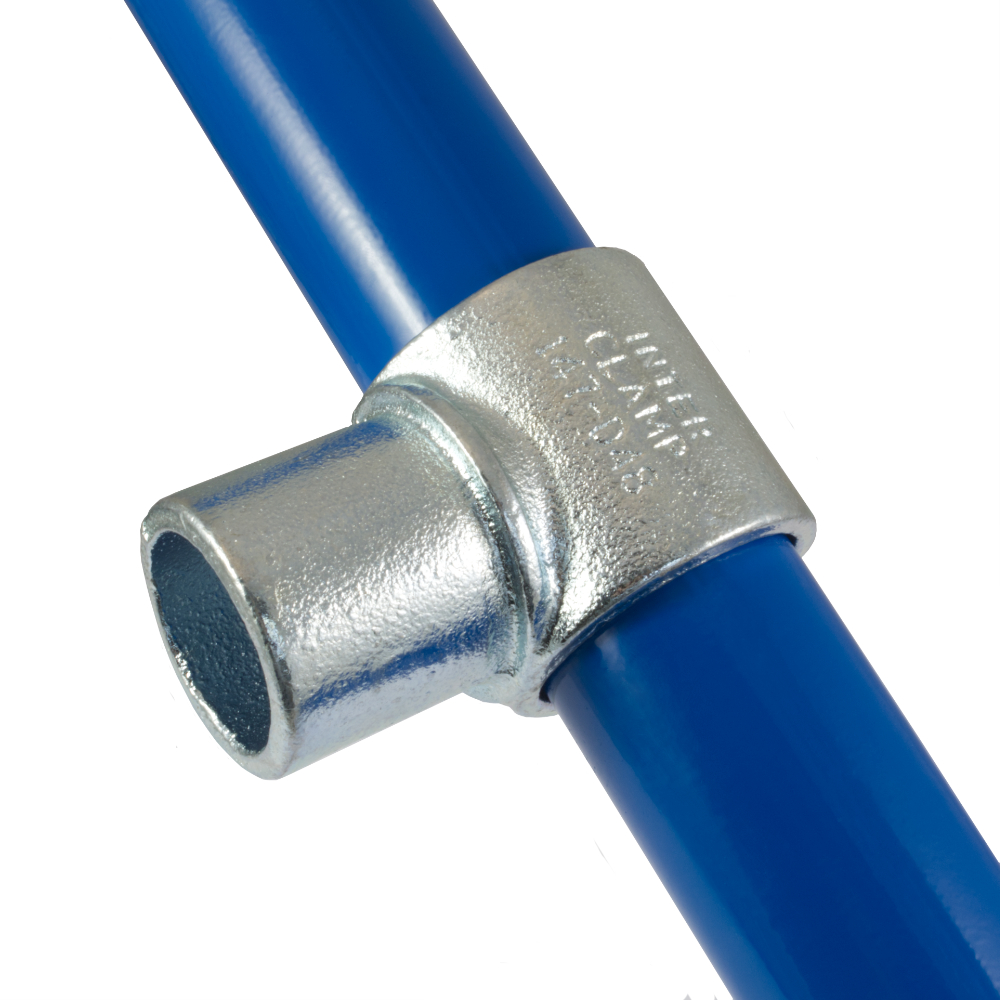

147 - Tee girevole interno
A versatile fitting, often used on slopes and staircases where the angle either varies or is unknown, and/or where there is a requirement for rails to be offset from uprights. Most commonly used with types 101 and 125 to mount sloping rails onto vertical uprights. The tube cannot be joined within the fitting.
Dati del prodotto e dimensioni
| Dimensione | a (mm) | b (mm) | c (mm) | Peso (kg) | Box Qty* | Part No |
| B34 | 22 | 60 | 34 | 0.32 | 96 | 147-B34 |
| C42 | 26 | 62.5 | 42 | 0.46 | 60 | 147-C42 |
| D48 | 30 | 72.5 | 48 | 0.56 | 50 | 147-D48 |
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.
Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
