146 - Palmo laterale

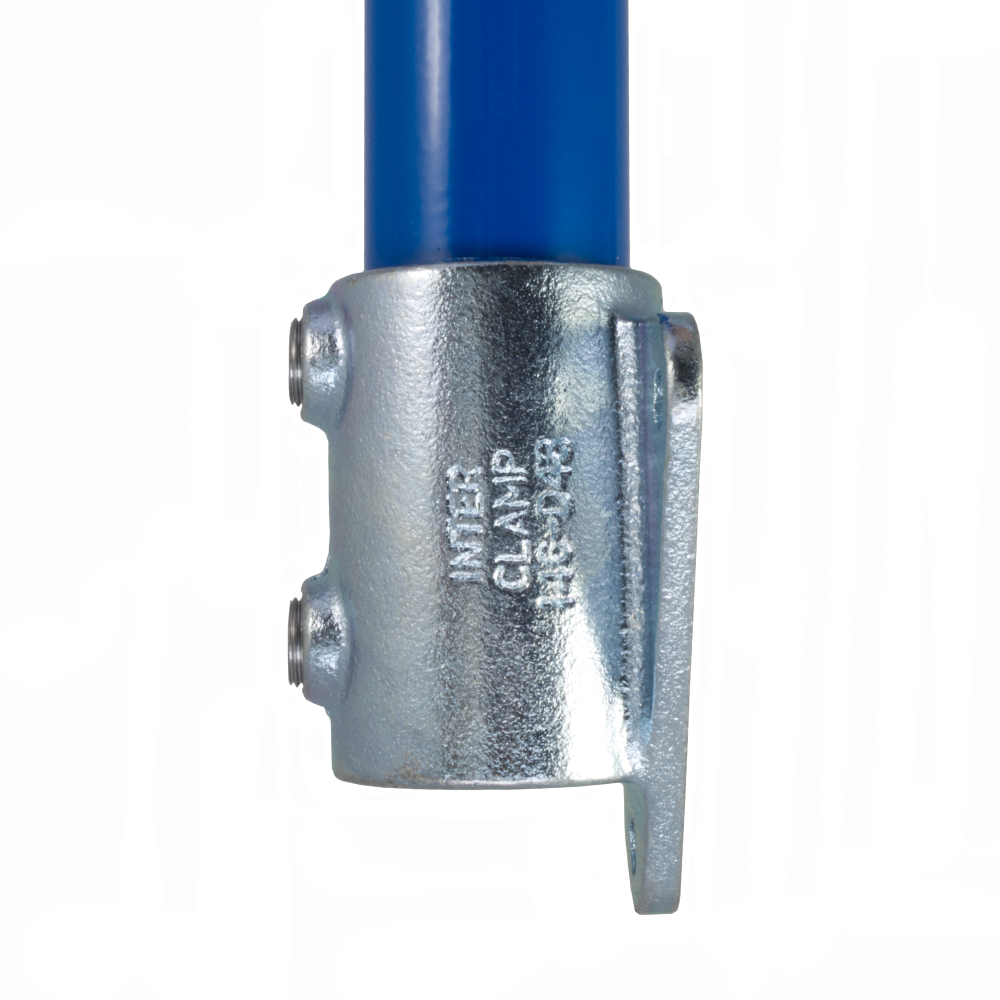

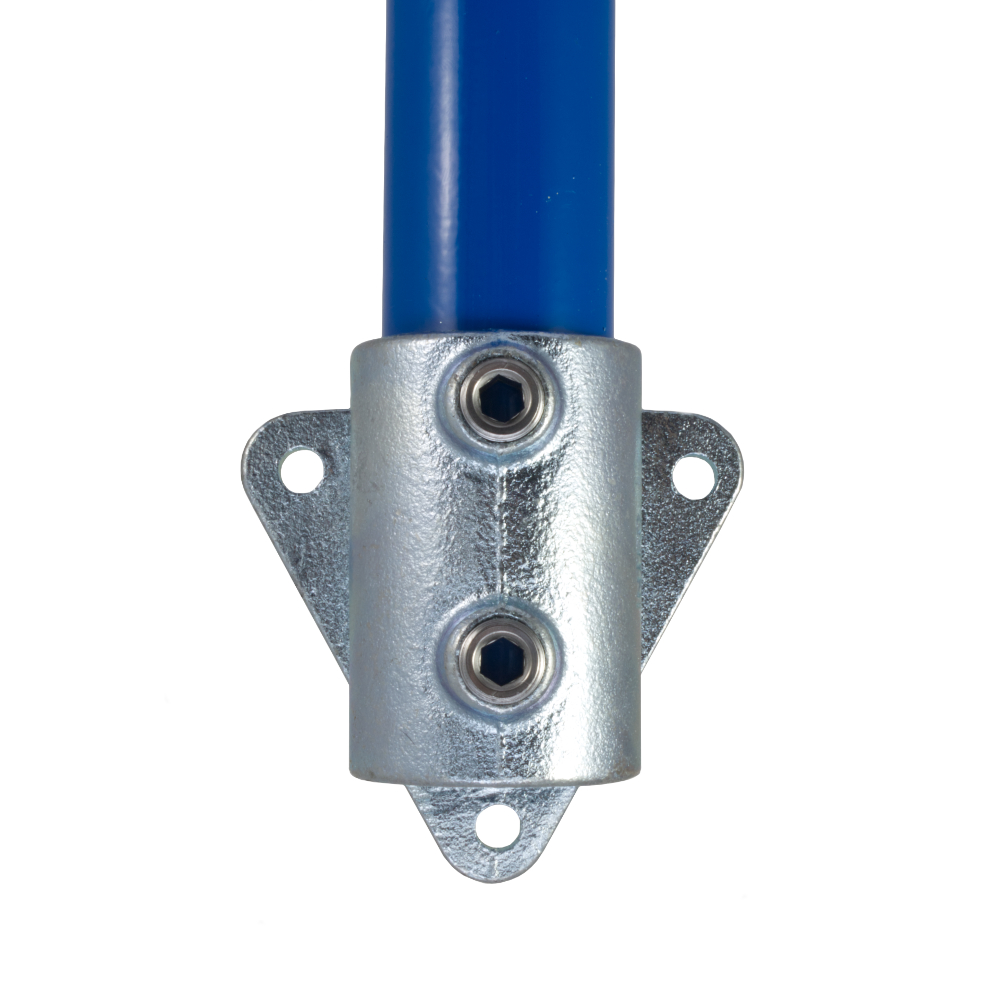

A palm-type fitting, often used to attach guardrail uprights to walls, staircases and ramps. In standard form, the tube cannot pass through the bottom of the fitting, although the fitting may be modified to accommodate this at extra cost (with loss of use of bottom bolt hole).

Dati del prodotto e dimensioni

Dimensione b (mm) c (mm) Hole Dia (mm) Peso (kg) Box Qty* Part No
  B34   68   63   10   0.58   50   146-B34
  C42   82   71   10   0.76   35   146-C42
  D48   86   79   10   0.84   28   146-D48

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
