Semplice da specificare
Facile da ordinare
Rapido da assemblare

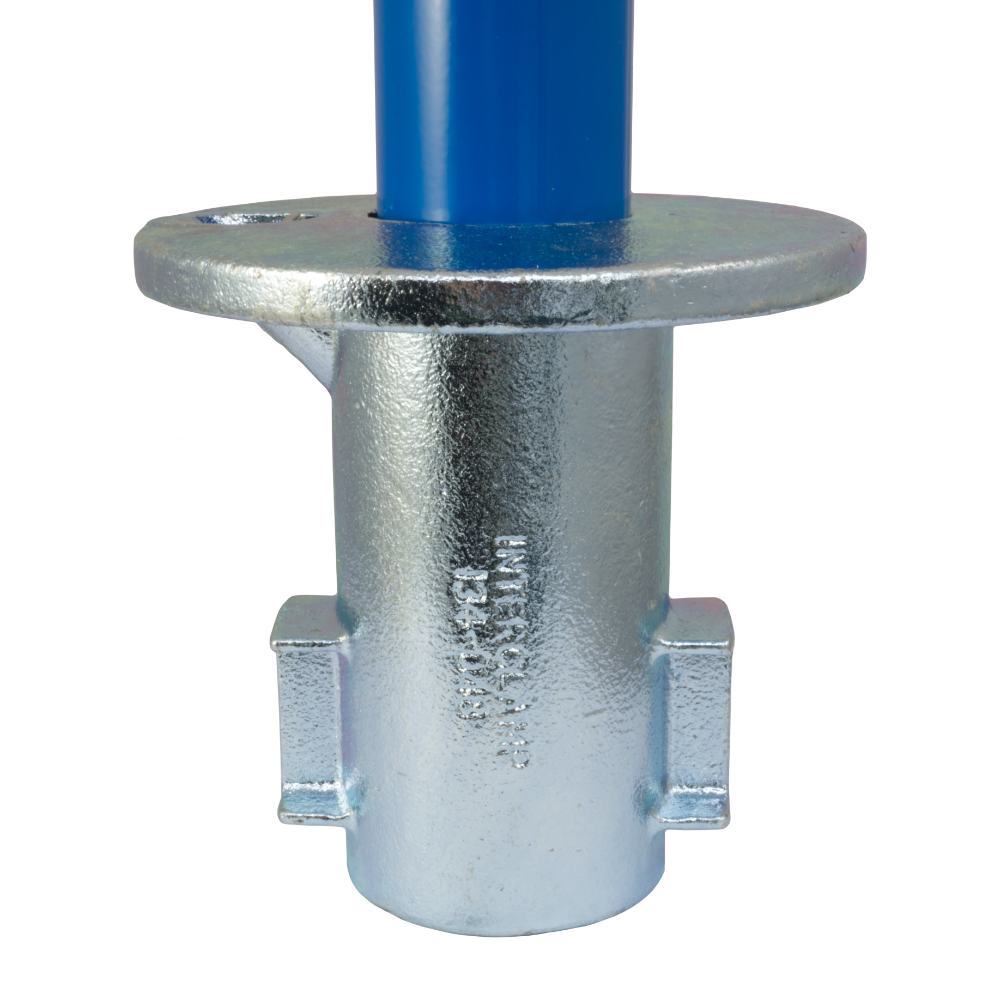

134 - Presa di terra

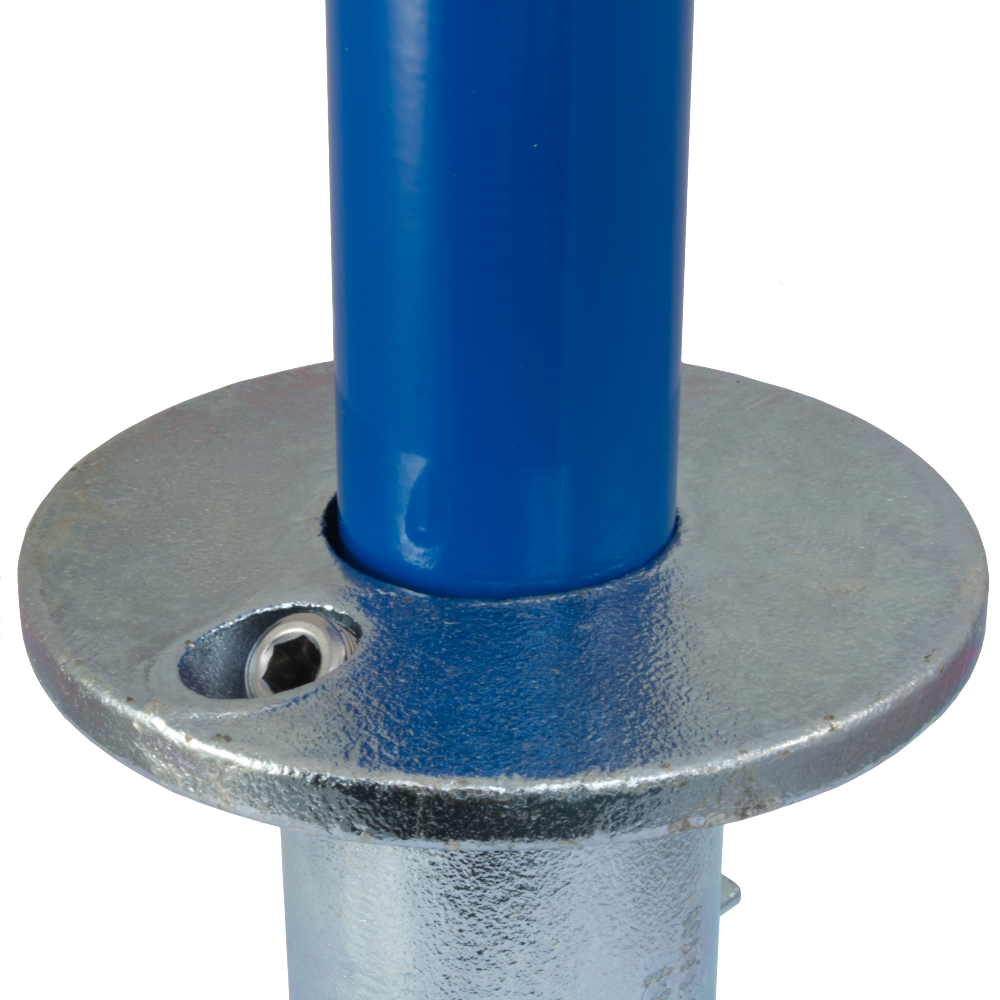

A setscrew allows the upright to be removed when required, the fitting remaining cast in place.
Dati del prodotto e dimensioni
| Dimensione | a (mm) | b (mm) | c (mm) | Peso (kg) | Box Qty* | Part No |
| B34 | 113 | 122 | 127 | 1.92 | 18 | 134-B34 |
| C42 | 125.5 | 135 | 139 | 2.60 | 12 | 134-C42 |
| D48 | 124.5 | 135 | 139 | 2.50 | 12 | 134-D48 |
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.
Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
Product Images
