119 - Cross (Middle Rail)

119 - Cross (Middle Rail)

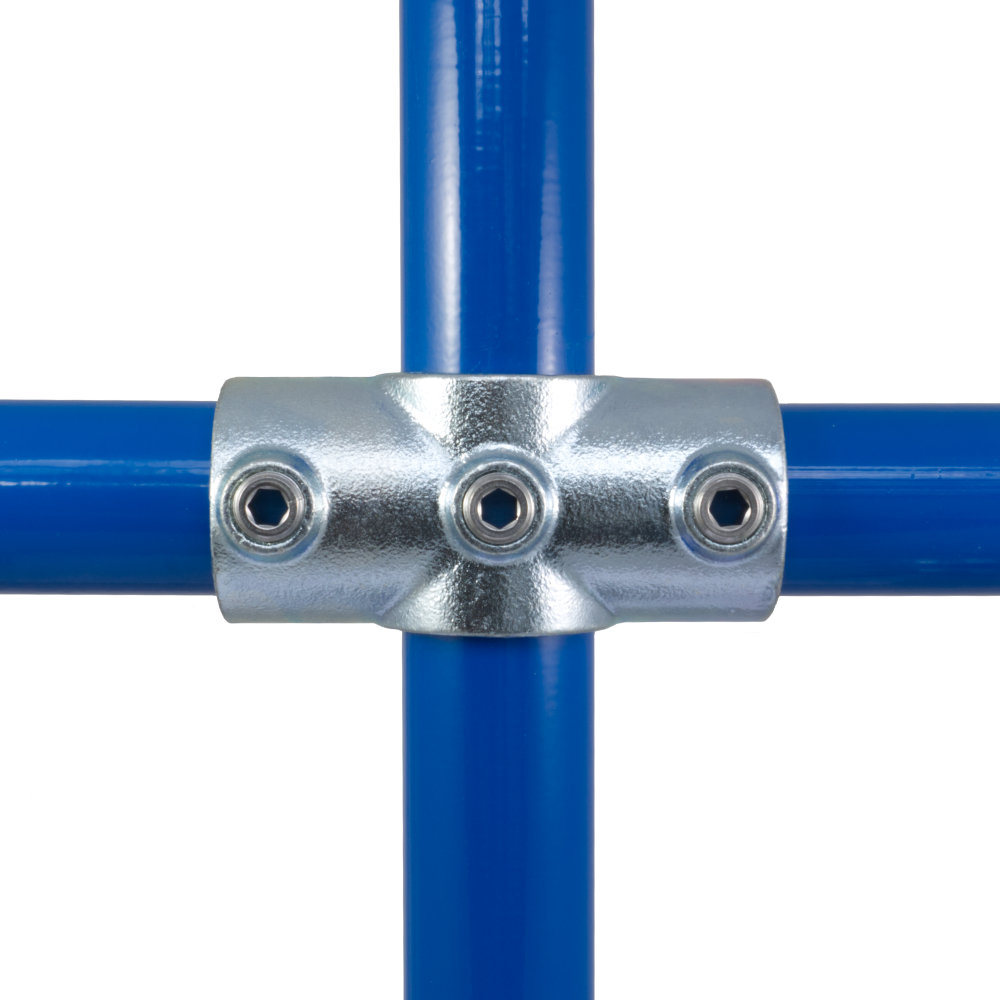

90° joint, often used between middle rail and uprights on level sites and often paired with type 101 or 104. The through tube (vertical in photo) cannot be joined within the fitting.

Lista Giunti Stampare < Precedente Successivo >

Dati del prodotto e dimensioni

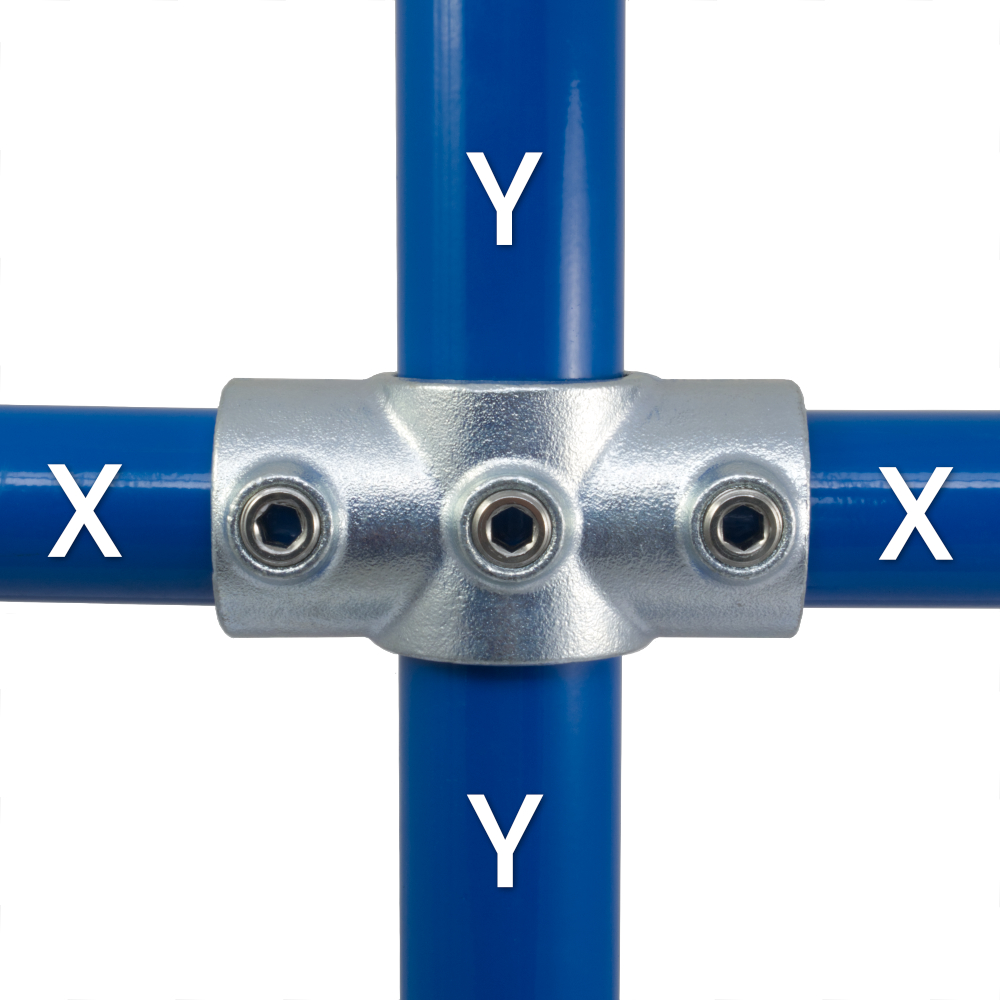

Dimensions Image 1 - 119 - Cross (Middle Rail)
Dimensions Image 2 - 119 - Cross (Middle Rail)
Dimensione b (mm) Peso (Kg) Box Qty* GTIN / EAN No
  A27   82   0.27   115   5060511020244
  B34   92   0.39   60   5060511020251
  C42   120   0.65   40   5060511020268
  D48   135   0.75   28   5060511020282
  E60   168   1.23   10   5060511020299

* Fittings are sold individually and do not need to be bought in box quantites. Box Quanties may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.



Product Images

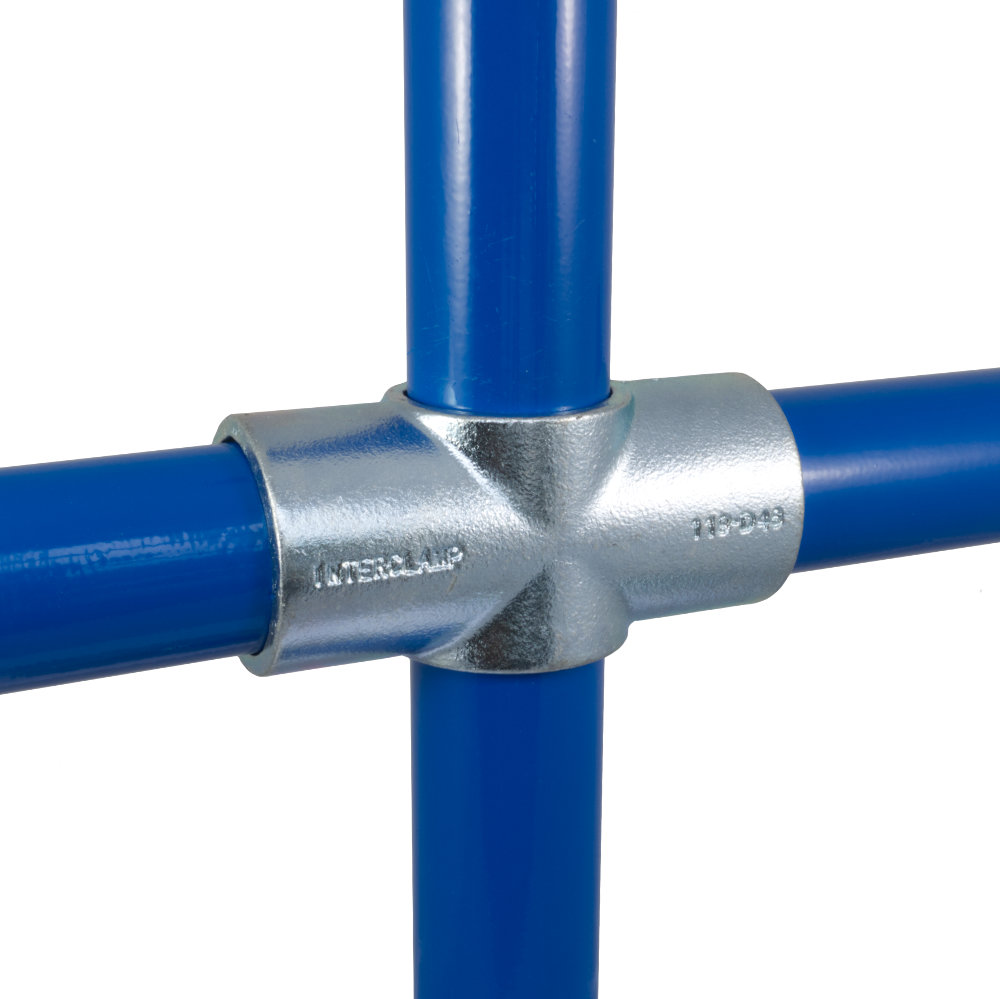

Product Images 1 - 119 - Cross (Middle Rail)
