104 - Long Tee

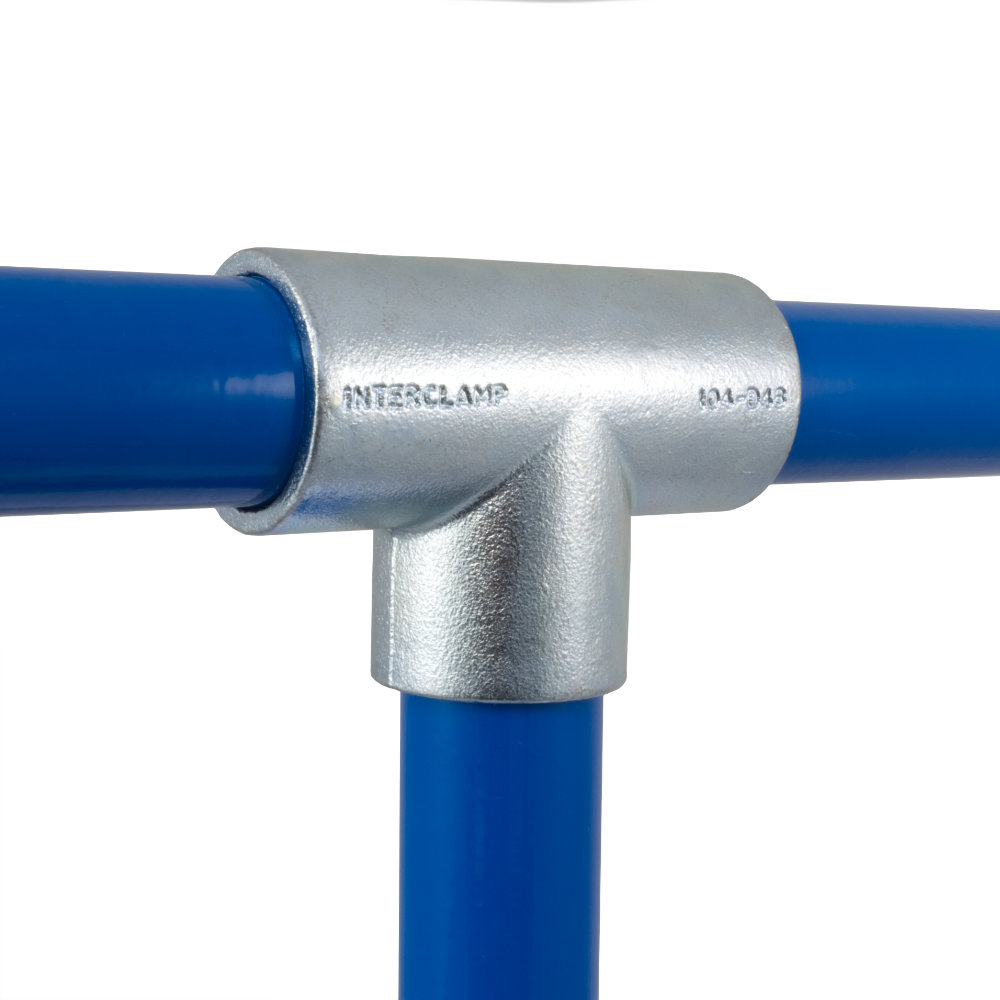

90° joint, often used to join intermediate uprights to top rails on level sites. This Interclamp can be used where through tube (horizontal in photo) has to be joined within the fitting. Where such a joint is not required, type 101 can often be used as an alternative.

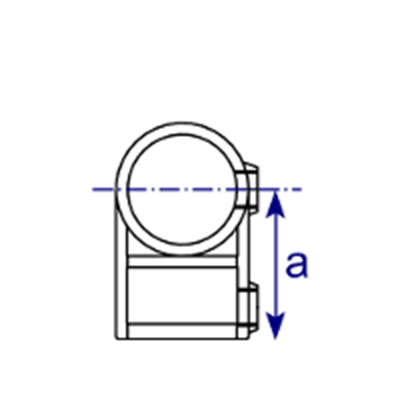

Dati del prodotto e dimensioni
| Dimensione | a (mm) | b (mm) | Peso (kg) | Box Qty* | Part No |
| A27 | 41 | 82 | 0.35 | 80 | 104-A27 |
| B34 | 46 | 92 | 0.51 | 50 | 104-B34 |
| C42 | 60 | 120 | 0.85 | 28 | 104-C42 |
| D48 | 68 | 135 | 0.98 | 22 | 104-D48 |
| E60 | 84 | 168 | 1.65 | 10 | 104-D48 |
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.
Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
