101R Short Tee - Riduzione

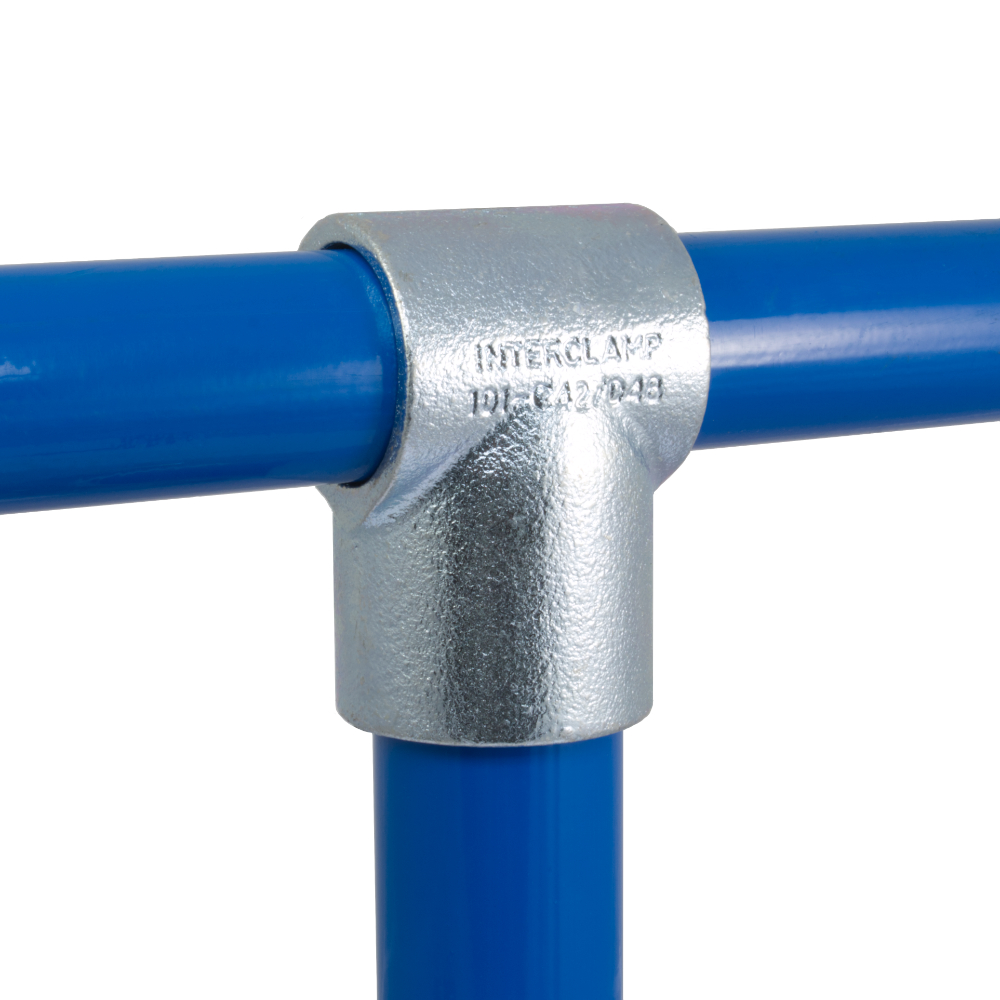

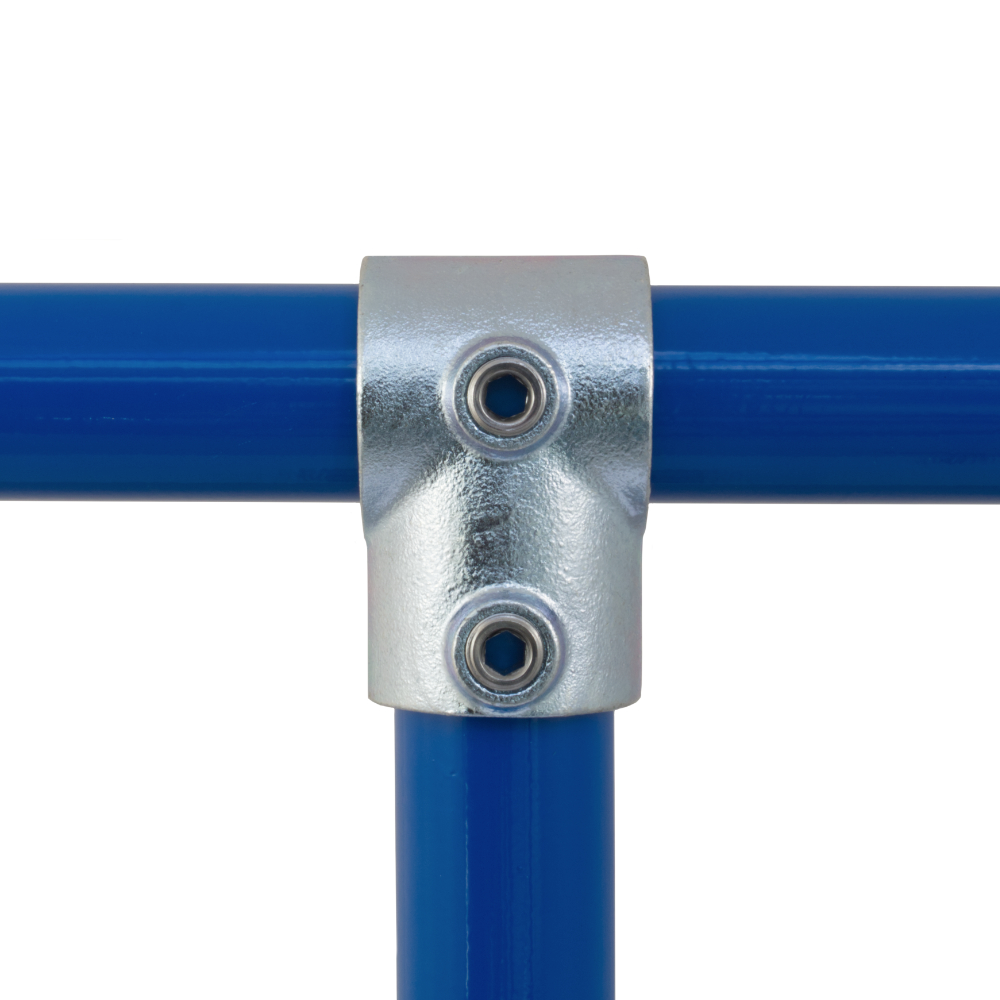

Used to join tubes of unequal size on level sites. This Interclamp cannot be used where through tube (horizontal in photo) has to be joined within the fitting.

Dati del prodotto e dimensioni

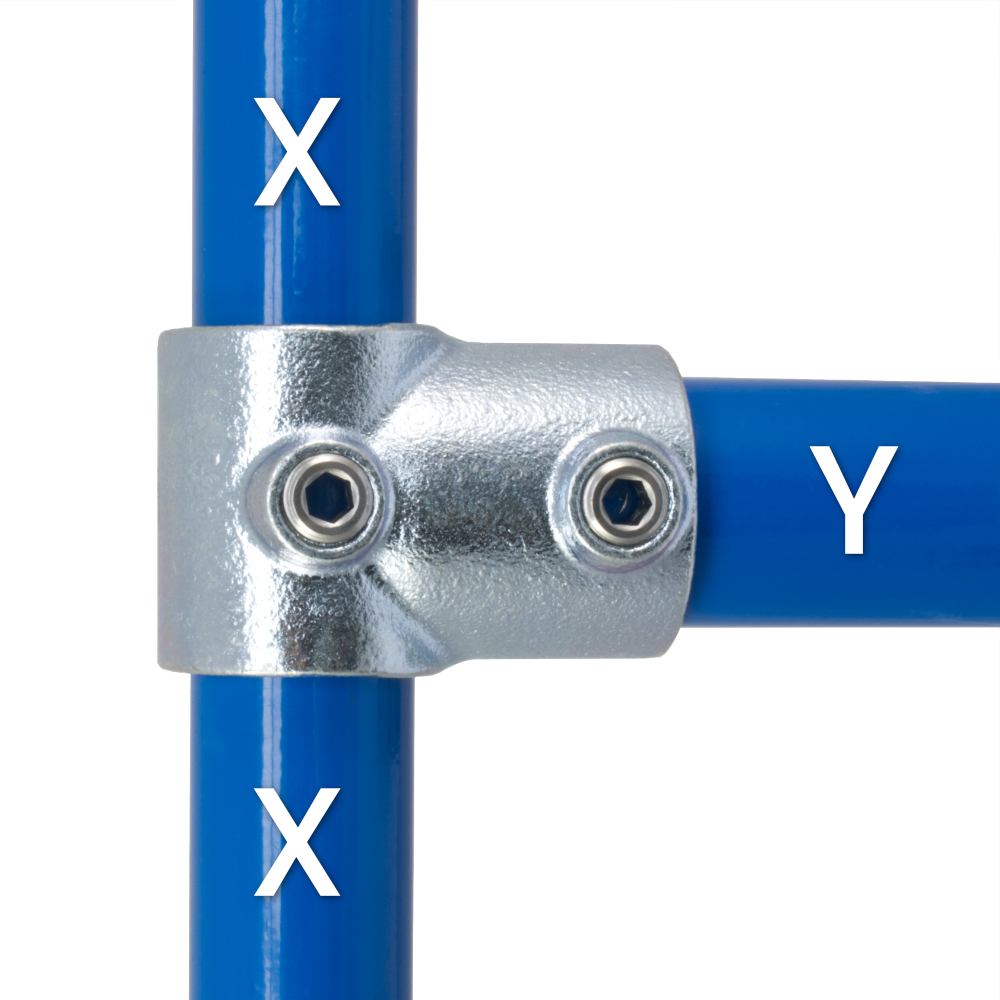

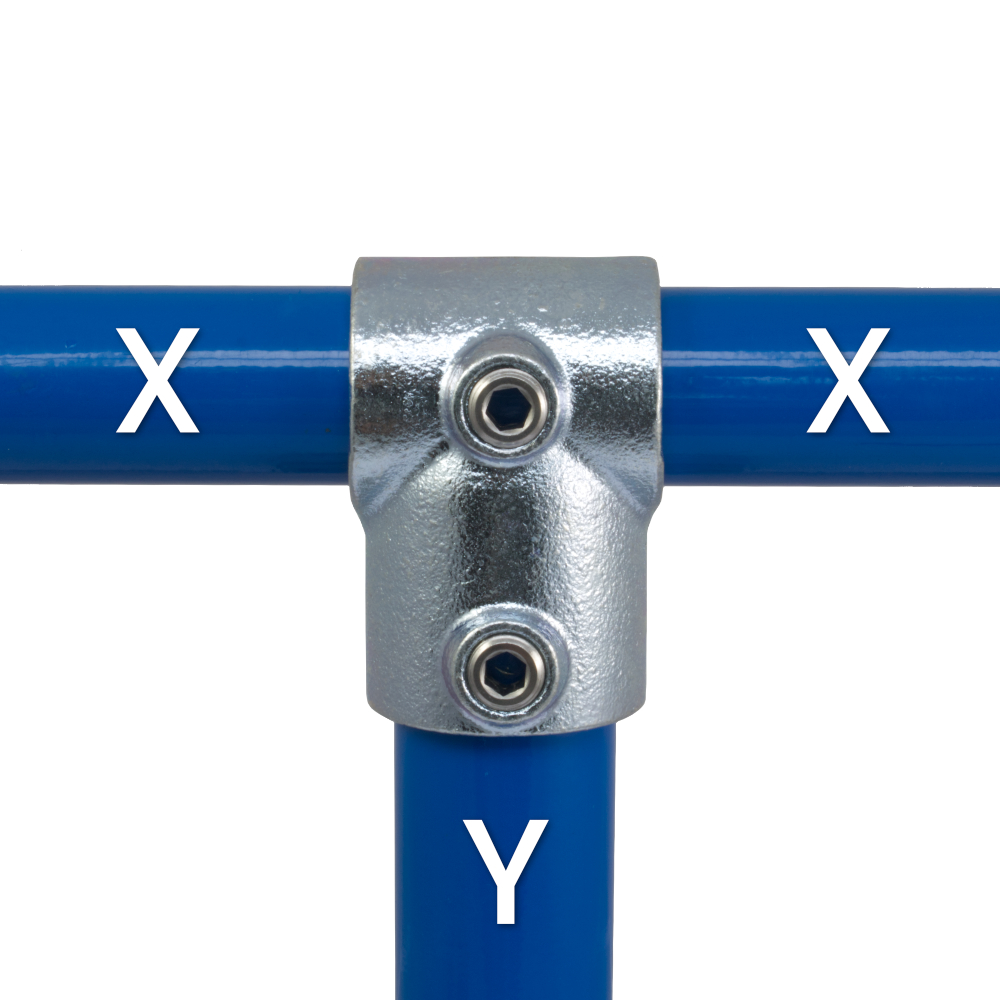

Dimensione a (mm) X Y Peso (kg) Box Qty* Part No
  B34/C42   56   B34   C42   0.45   50   101-B34/C42
  C42/B34   57   C42   B34   0.40   50   101-C42/B34
  C42/D48   68   C42   D48   0.58   42   101-C42/D48
  D48/B34   64   D48   B34   0.42   50   101-D48/B34
  D48/C42   63   D48   C42   0.51   48   101-D48/C42
  E60/D48   74   E60   D48   0.69   32   101-E60/D48

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
