101 - Short Tee

101 - Short Tee

90° butt joint, often used to join intermediate uprights to top rails and middle rails to end uprights on level sites.

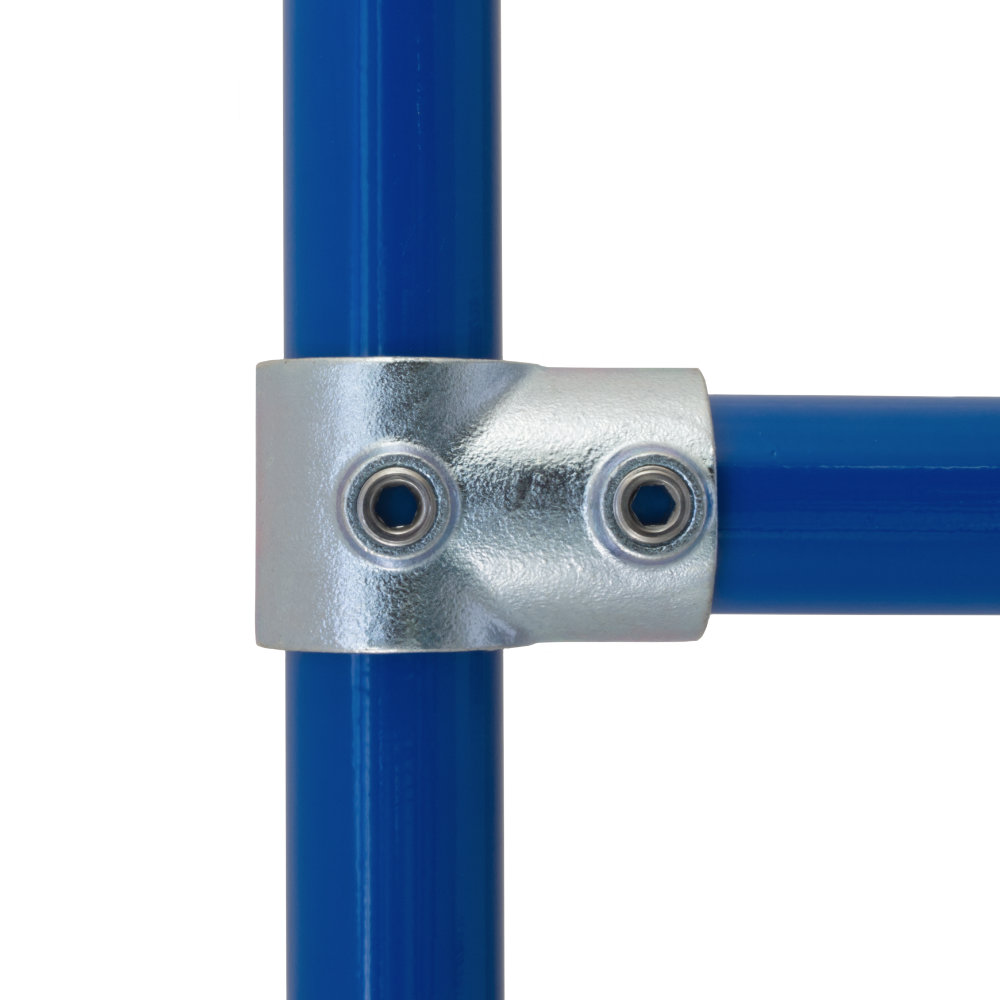

This Interclamp cannot be used where through tube (horizontal in photo) has to be joined within the fitting (See Interclamp 104).

Lista Giunti Stampare Successivo >

Dati del prodotto e dimensioni

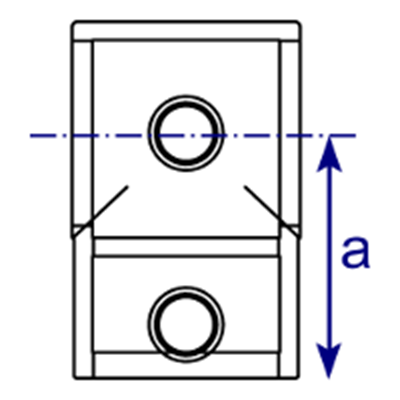

Dimensions Image 1 - 101 - Short Tee
Dimensions Image 2 - 101 - Short Tee
Dimensione a (mm) Peso (Kg) Box Qty* GTIN / EAN No
  A27   41   0.20   165   5060511020008
  B34   46   0.32   84   5060511020015
  C42   60   0.48   50   5060511020039
  D48   68   0.57   42   5060511020060
  E60   84   0.89   22   5060511020091

* Fittings are sold individually and do not need to be bought in box quantites. Box Quanties may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.



Product Images

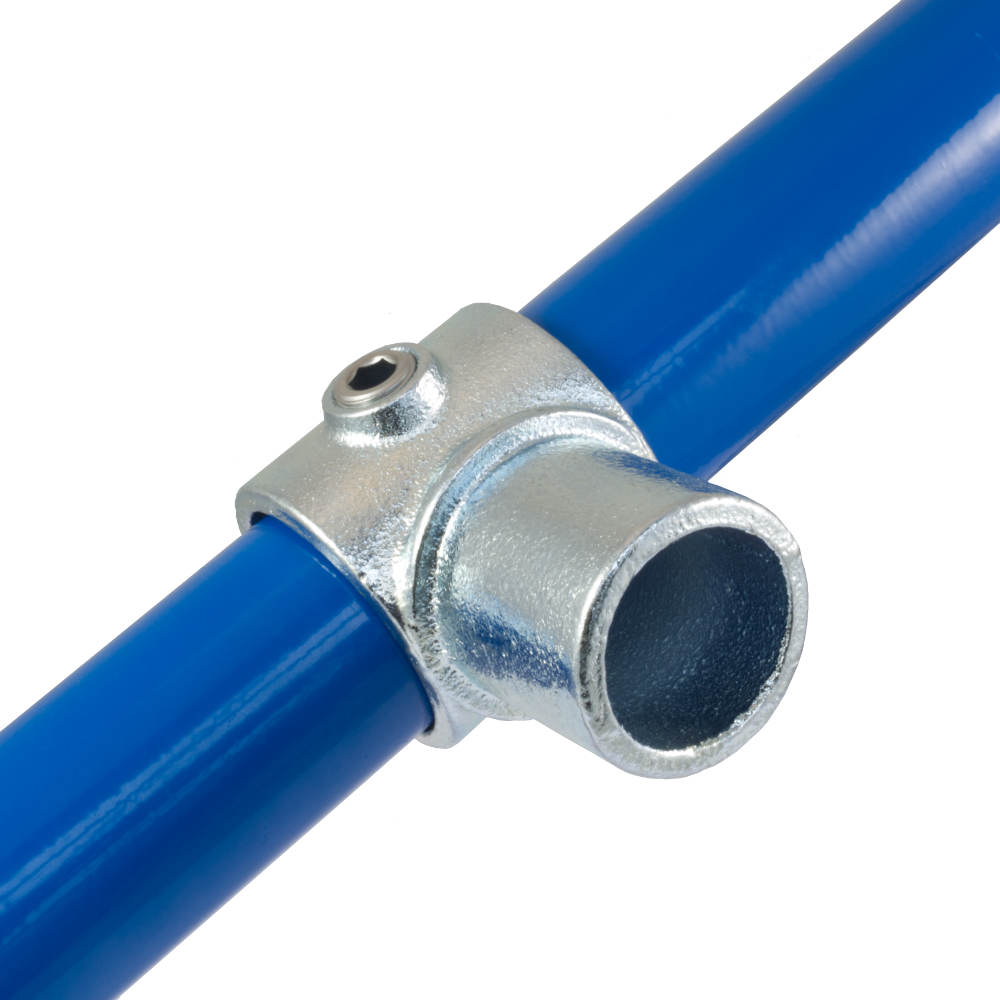

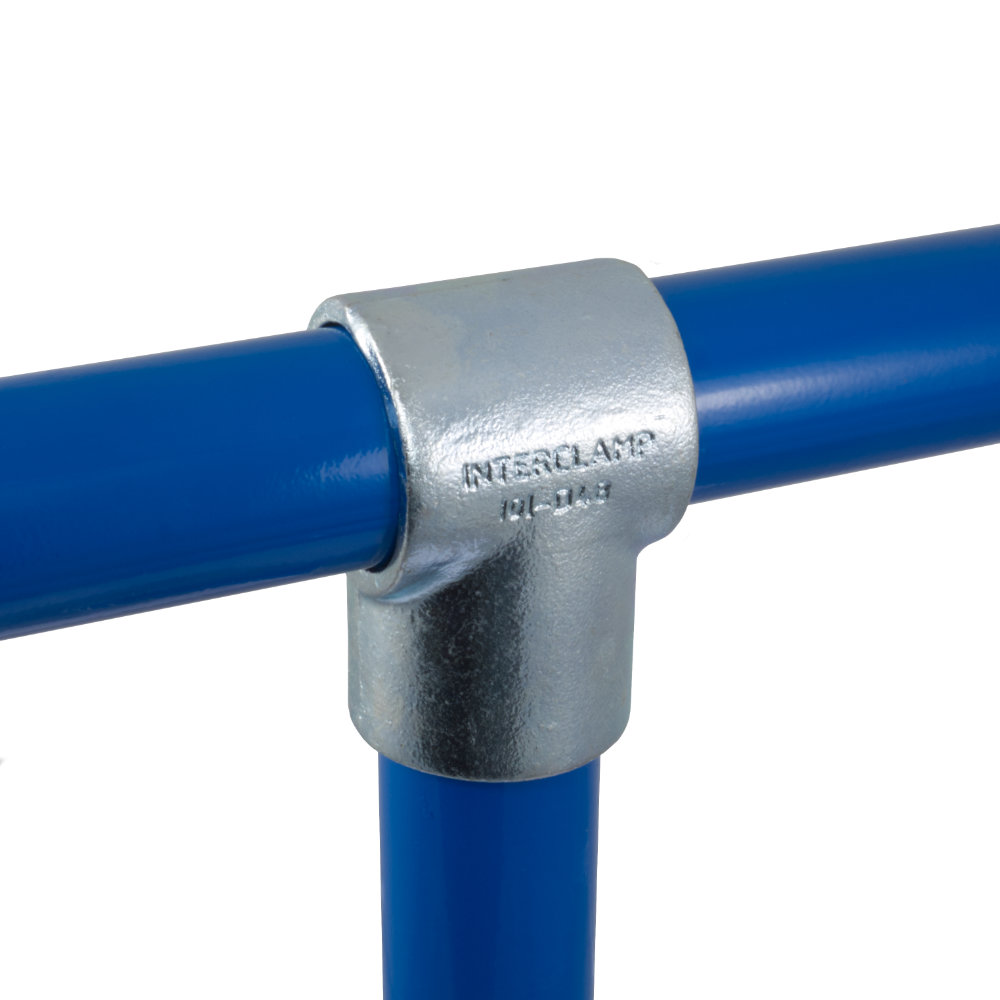

Product Images 1 - 101 - Short Tee
Product Images 2 - 101 - Short Tee
Product Images 3 - 101 - Short Tee
